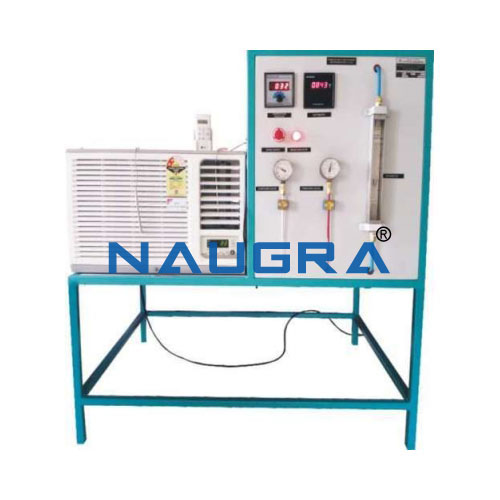

This Laboratory scale working model housed on a M.S. Square tube frame
further mounted on a wheels (CI) with nstrumentation panel is used:-
i) To study the Vapour compression Cycle.
ii) To calculate co-efficient of performance (COP).
iii) To evaluate tonnage capacity.
Range: 0 to 300 psi / 30 “ Hg to +150 psi
Capacity: 4 KVA
Output: 230 V+/- 10%
Window Type Air Conditioner Test Rig Operation Manual, Lab Instructor Guide and Student Workbook. Window Type Air Conditioner Test Rig for Educational Vocational, Didactic Technical Training Equipment Labs.
