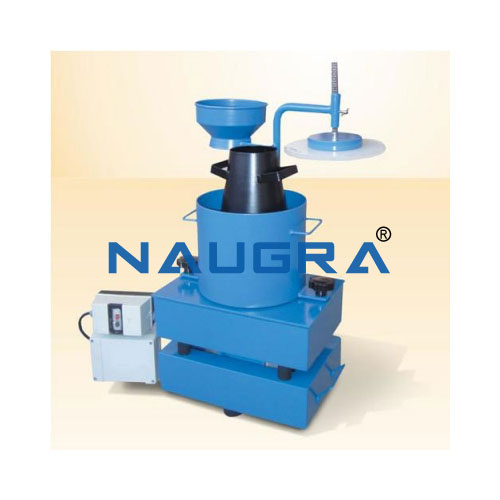

The instrument is used for work ability as well as consistency of fresh concrete.
A slump Cone and a graduated rod supplied with the instrument helps the
operator to find out slump values and vibration table with container and
acrylic disc is used to find out work ability of concrete expressed in
Vee Bee degrees, which is defined as the time in seconds to complete
required vibrating at which the fresh concrete flows out sufficiently to
come in contract of the entire face of acrylic disc.
A vibrating table size 380 mm long and 260 mm wide, resting upon elastic
support at a height of about 305 mm above the floor, complete with
Start/Stop switch, cord and plug.
A holder is fixed to the base in to which a swivel arm is telescoped
with funnel and guide swivel arm is also detachable from the vibrating
The divisions of scale on the rod record the slump of the concrete in millimeters.
Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table.
A slump cone open at both ends with lifting handles and a tamping rod of size 16 mm dia and 600 mm long rounded at both ends
Ve Bee Consisto meter Operation Manual, Lab Instructor Guide and Student Workbook. Ve Bee Consisto meter for Educational Vocational, Didactic Technical Training Equipment Labs.
