DC Machine Lab II
DC Machine Lab II

DC Machine Lab-II is an important system for the Electrical laboratories. It is DC Machine Lab-II that provides comprehensive learning of functioning of a DC Motor. It can aptly be employed for performing various exercises like Motor Starting, Speed Control, N-I Characteristics etc.Thus the trainer makes the subject understanding complete.

  • DC Shunt Motor
  • Mechanical Loading arrangement
  • Exclusive and rugged designed panel
  • Stand alone operation
  • Designed by considering all the safety precautions
  • High quality meters
  • Diagrammatic representation for the ease of connections
  • Provided with an extensive e-manual

Technical Specifications

  • Input : 180 V Fixed DC,  0-180 V Variable DC

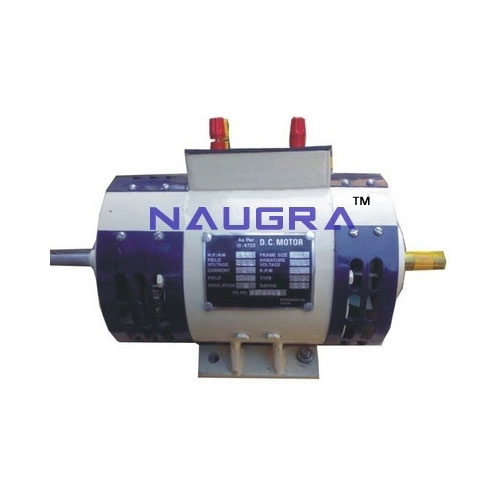

  • DC Machine
  • Type : DC Shunt
  • Rating : ½ HP
  • RPM : 1400 (No Load)

DC Machine Lab II Operation Manual, Lab Instructor Guide and Student Workbook. DC Machine Lab II for Educational Vocational, Didactic Technical Training Equipment Labs.
