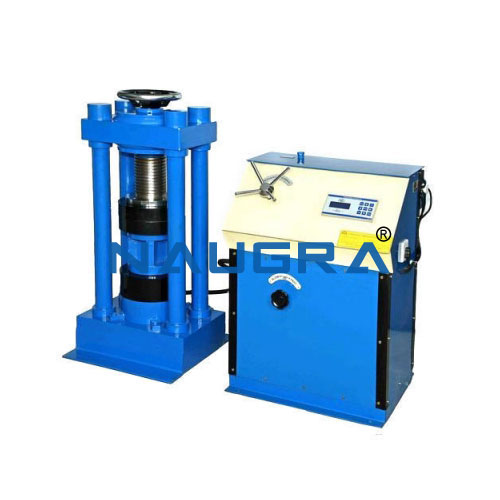

Compression Testing Equipment Electrically cum Manually (Hand) Operated.
The loads are measured on Bordon tube type load gauges which are calibrated against certified proving rings.
The load gauges are fitted with a maximum load pointer.
In the Electrically Operated Pumping Units, load gauges are fitted with
micro switches to switch-off the motor when the load approaches the
maximum capacity of the gauge, avoiding any over loading.
Relays are incorporated so that the motor does not restart on its own after a power breakdown.
The electrically operated pumping units are provided with a control knob
to adjust the pace rate which can be effectively controlled by an
experienced operator during the course of testing, by observing the
progress of the load gauge reading.
The electrically operated pumping units are also fitted with hand operated pump
Cube Testing Machine Operation Manual, Lab Instructor Guide and Student Workbook. Cube Testing Machine for Educational Vocational, Didactic Technical Training Equipment Labs.
