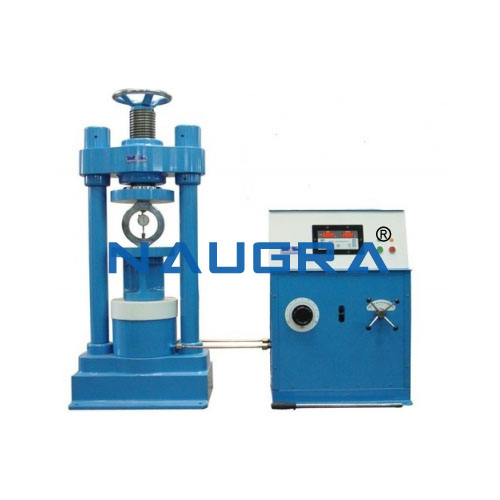

Compression Testing Machine for Concrete

Compression Testing Machine for Concrete

Compression Testing Machine for Concrete

Lab Catalog Supply Code: CVL-CCT-0002

Compression Testing Machine for Concrete

Compression Testing Machine for Concrete
Compression Testing Equipment Manually (Hand) Operated fitted with single load gauge.
The loads are measured on Bordon tube type load gauges which are calibrated against certified proving rings.
The load gauges are fitted with a maximum load pointer.

Technical Specification:-
Capacity (in KN)                     :   1000 KN
Pressure Gauge (In KN)         :   1000 KN
Least Count (In KN)                  :   5 KN
Pressure Gauge Diameter (mm)   :  150
Vertical Daylight (mm)                :  310 Adj
Horizontal Clearance(mm)           :  260
Platen Size (mm)                  :  240 x 165
Ram Diameter (mm)                   :  165
Ram Travel (mm)                  :  50

Compression Testing Machine for Concrete Operation Manual, Lab Instructor Guide and Student Workbook. Compression Testing Machine for Concrete for Educational Vocational, Didactic Technical Training Equipment Labs.
