Lab Catalog Supply Code: Milling0006

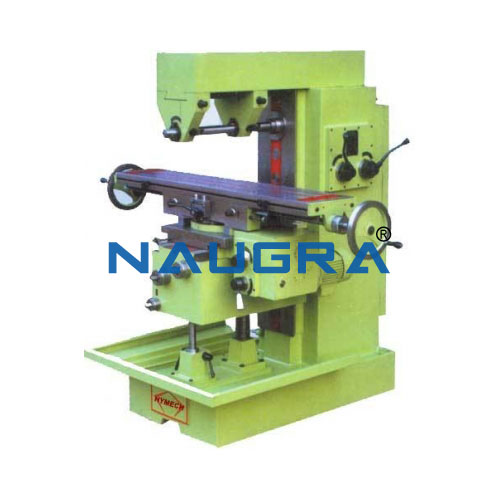

Universal Milling Machine

Universal Milling Machine

TABLE
Working Surface 900 x 210
Number & Size of T-Slots 3x 13
Distance between T-Slots 45

FEEDS
Cross 150
Vertical 300
Longitudinal 425

SPINDLE
Arbor 25.4
Number of Speeds 6(50 to 1000)
Taper ISO-30
Distance from Spindle to Top (min. - max.) 10-275

MOTORS
Spindle 2H.P. 1440RPM
Coolant 0.10 H.P. 2800 RPM

WEIGHT
Net 900 Kg.
Gross 1100 Kg.

VERTICAL ATTACHMENT ON RAM
Cross 110-225
Vertical 75-300
Speeds for Vertical Head (Ram Type) 3
(380-960)

Universal Milling Machine Operation Manual, Lab Instructor Guide and Student Workbook. Universal Milling Machine for Educational Vocational, Didactic Technical Training Equipment Labs.
