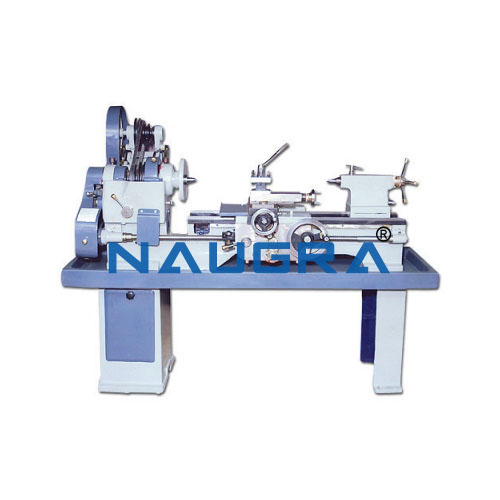

Light Duty Upper Motor Lathe

Light Duty Upper Motor Lathe

Light Duty Upper Motor Lathe

Lab Catalog Supply Code: Lathe0004

Light Duty Upper Motor Lathe

Light Duty Upper Motor Lathe

HARDENED BED UPPER MOTOR CHANGE GEAR TYPE OR NORTON GEAR TYPE

STANDARD ACCESSORIES :
Two dead Centres, Centre Sleeves, Square Tool Post, Tool Post Key, Gear Set for MM & Inch Thread, Carrier Plate, Motor Pulley, Thread Chart, Suitable Electric Motor, Dog Chuck with Flangue, R/F Switch, V Belt.

OPTIONAL ACCESSORIES :
Quick change Norton Gear Box, Rear Tool Post, Taper Turning attachment, Coolant unit with Assembly, Machine Lamp, 3 Jaw True Chuck, Chuck Flange, Face Plate, Steady Rest & Follow Rest, Revolving Centre

Size 3'.6" / 4'.6"
  Inch.
Length of Bed 42/54"
Width of Bed 9-3/8"
Height of Centre 6-1/2" / 8"
Admit between Centres 15"/27"
Dia. of Hole through Spindle 1-5/8" / 2"
Swing over Bed (Max.) 13"/14"
Swing in Gap (Max.) 20"/24"
Swing over cross slide 8"/10"
Tail Stock Spindle Travel 5"
Spindle Speeds No. 8
Range 25-796 RPM
Spindle Morse Taper MT-4
Lead Screw Dia. 1" x 4 T. P. I.
Threading Range 0.5 to 40 T. P. I. & 0.5 to 8 mm pitch
or
Dia Threading Range 1" x 6T. P. I. 1 to 45 T. P. I. & 0.5 to 6 mm pitch
Required H.P. 1 H.P

Light Duty Upper Motor Lathe Operation Manual, Lab Instructor Guide and Student Workbook. Light Duty Upper Motor Lathe for Educational Vocational, Didactic Technical Training Equipment Labs.
