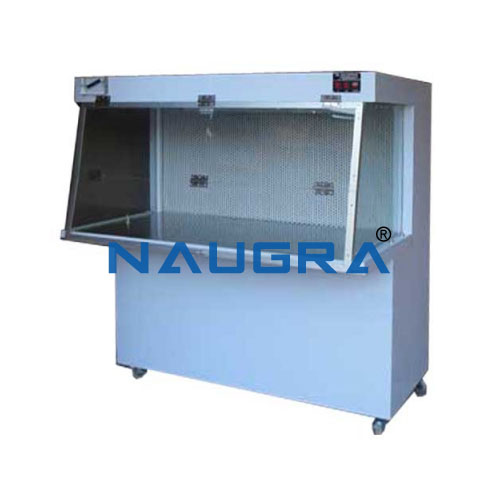

Laminar Air Flow Horizontal

Laminar Air Flow Horizontal The bench is made of thick ply board, and reinforced with teak wood
where every necessary. All visible surface are laminated with white
decolam Lamination. All interior surfaces are painted with air drying
Epoxy paint. The filter seat has rubber padding for a perfect rubber to
rubber sealing. The Front & side panels are made of Perspex sheet.

At the delivery end, the unit is provided with Super Air H.E.P.A.
Filters, Comprising of non-woven microfibre glass pleated media. The
pleats are separated by corrugated aluminium foil separators. Initial
pressure drop is less then 25mm W.C. at rated flow D.O.P. efficiency is
better than 99.97% down to 0.3% microns particle size. The HEPA Filters
are protected by a plastic/Aluminium grill.

The unit is illuminated by fluorescent tube lights and is designed to
provide a work area confirming to Class 100 of revised US Federal
Standard 209B.

Laminar Flow Cabinets are self-contained workstation units available
in either horizontal or vertical laminar flow models. They can be placed
within a clean room to create an ultra-clean environment or used to
provide an individual clean air environment for small items not
requiring a full-size Clean room…

FEATURES :-
•	Wooden/M.S Duley Power Coated /Stainless Steel Body.
•	HEPA Filter
•	Pre-Filter
•	Blower (Motor Blower Assembly)
•	U.V. Light
•	Fluorescent Lamp
•	Operating Switch
•	Pressure Gauge (Manometer)
•	Stainless Steel Table
•	High quality HEPA filter provides protection for the product (filtration efficiency of more than 99.97% at 0.3 micron.
•	Ultra-quiet noise level of not more than 65 dBA.
•	Durable and easy to clean stainless steel work.
•	Cock for gase or vacuum line.
•	Work area properly illuminated by diffused glare free fluorescent light.



OPTIONAL ACCESSORIES :-
•	Particle Dust Count-Validation at site.
•	Timer for U.V. Lights.
•	Speed Regulator
•	Caster Wheels.
•	Magnahelic Manometer.



SPECIFICATIONS:-
Standard Size (Working Area)	2′ x 2′, 3′ x 2′, 4′ x 2′, 6′ x 2′, 8′ x 2′
Air Velocity	90 ± 20 cfm (Average)
Filtration Elements	Main Filters : HEPA Filter Prefilter: Washable non-woven polyester   fibers.
Filter Efficiency	Main Filters : 99.97 at 0.3 micron Prefilter: Arrestance 90%, at 10 microns
Work	Stainless Steel
Noise Level	< 65 dBA
Light Intensity	800-1000 Lux
Power Supply	220V Single Phase, 50 Hz.

Shipping & Installation

We dispatch Laminar Air Flow Horizontal from our Ambala Cantt manufacturing facility to destinations across 90+ countries. All shipments include comprehensive documentation, technical manuals, and a Lab Instructor Guide.

• Packaging: Export-grade wooden crate with anti-corrosion lining
• Lead Time: 4-6 weeks for standard orders, customised lead time for bulk tenders
• Installation: On-site installation and commissioning by our certified engineers (optional)
• Training: Hands-on training for instructors and lab technicians provided
• Warranty: 12-month manufacturer warranty against material and workmanship defects
