Lab Catalog Supply Code: CNC-MTE-0017

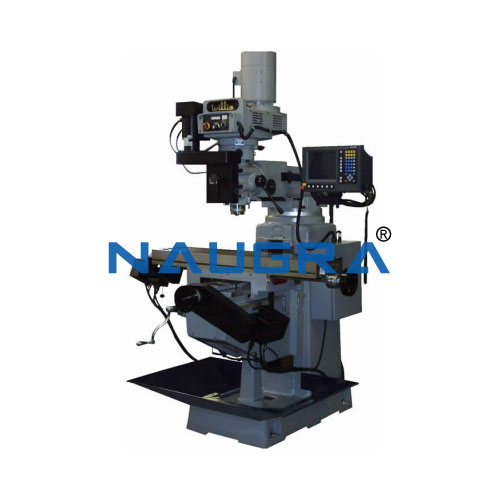

CNC Semi Production Mill

Description:-
Semi Production Mill machine specially designed with industrial controller.
This machine which is specifically designed for educational institutes offers hands-on experience of industrial machines with safety features of trainer machines.

Specification:-

Axis Motor and Drive

Servo Motor with Servo Drives

X Axis

300 mm

Y Axis

225 mm

Z Axis

250 mm

Spindle to column distance

270 mm

Feed Rate

0 to 10,000 mm/min

Rapid Travel

10,000 mm/min

Guideways

LM Guideways

Table Size

560 x 220 mm

T Slot

3 x 10 x 50

Load on Table

120 Kg

Spindle Motor Capacity

3 HP

Spindle RPM

100 to 4000 RPM

Positioning

0.010 mm

Repeatability

+- 0.005 mm

Resolution

0.001 mm

Tool Changer

Automatic

No. of Tools

8 / 12

Maximum Tool Length / Dia

40 mm / 16mm

Vice Type

Pneumatic/ Manual

Dimension in mm

1300 x 1100 x 1900 mm


CNC Semi Production Mill Operation Manual, Lab Instructor Guide and Student Workbook. CNC Semi Production Mill for Educational Vocational, Didactic Technical Training Equipment Labs.
