A bench top unit comprising a vacuum formed ABS plastic plinth with
integral electrical console onto which is mounted the stirred reactor
vessel sampling circuit with peristaltic pump, tubular coil heat
exchanger and polarimeter device.
A polarimeter device measuring optical transmission and angle of rotation.
Protection devices for all electrical circuits.
Three displays: PID temperature control (reactor temperature), a display
for the angle of rotation, a display for optical transmission or
temperature at polarimeter.
A temperature sensor and heater mounted in the reactor vessel and linked
to a PID controller for accurate reaction temperature control.
Sensor signals are routed to the I/O port for connection to a PC.
This is a reactor system specially designed to perform batch enzyme
reaction utilizing the glucose isomerization reaction catalyzed by
The unit is used to demonstrate batch enzyme kinetics and enzyme characteristics.
The fourth reactor - stirred tank reactor in series - is mounted on a dedicated unit.
This provides a well understood and safe reaction for the students to investigate the different reactor types.

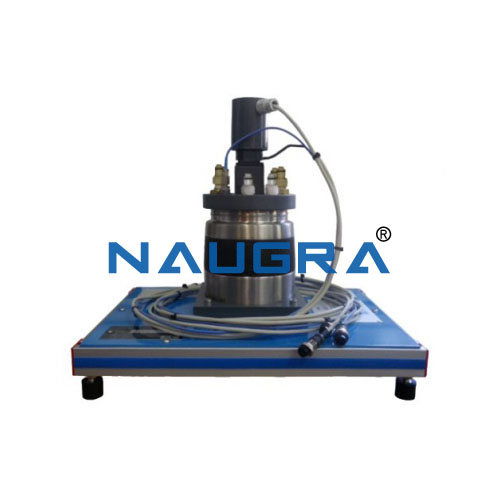

It consists of a bench-top unit onto which is mounted a reactor vessel
in which the glucose isomerase-mediated reaction takes place.
The reactor itself is made of clear acrylic, which gives good visibility.
A cruciform geometry impeller constructed from stainless steel mesh
retains the immobilized enzyme whilst allowing efficient mixing with the
The reactors use the saponification reaction between ethyl acetate and sodium hydroxide.
The measurement system relies on the fact that both glucose and fructose
solutions rotate beams of polarised light, glucose to the right and
fructose to the left.
The reaction temperature is maintained using two heaters and a temperature sensor mounted within the reactor.
These are linked to a PID controller, which is programmed to maintain the desired set-point temperature.
Safety interlocks prevent the heaters being activated when there is a low reactor liquid level or when the impeller is inactive.
A continuous sampling loop driven by a peristaltic pump removes liquid
from the reactor and transfers it to a tubular coil heat exchanger where
it is cooled prior to passing through a polar meter where the angle of
rotation of polarised light is measured.
From this angle measurement, the concentration of both glucose reactant and fructose product can be determined.
The impeller is a variable speed type.
This eliminates the need for manual glucose assays.
The polarimetry measurement method allows the progress of the reaction to be monitored on-line
Batch Enzyme Reactor Operation Manual, Lab Instructor Guide and Student Workbook. Batch Enzyme Reactor for Educational Vocational, Didactic Technical Training Equipment Labs.
